Trailer Specification |
|
|
Type |

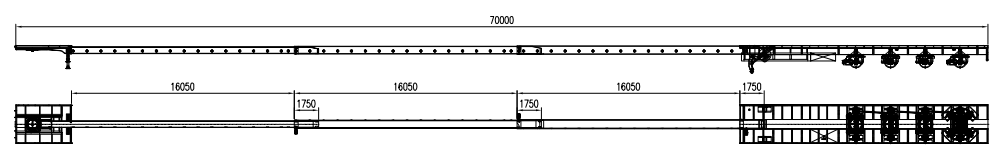

70m Telescopic wind blade trailer |
|
Overall size |
19850*3000*1640mm (3 sections telescopic beam, could extend to 62000mm) |
|
Curb weight |
Approx. 28,000kg |
|
Payload |
40,000kg |
|
Chassis |
Heavy duty and extra durability designed ; Q550 |
|
Floor |
3mm checkered plate |
|
Landing gear |
28T two-speed, manual operating, JOST |
|
King pin |
3.5’’ bolt-in king pin. JOST |
|
Steering |
Auto and Manual, Max. Angle 45° |
|
Suspension |
Air suspension, No.1 & 4 axles are liftable. |
|
ABS |
Optional |
|
Hydraulic hose Chian |
Optional |
